LCD Screen Size :
13.3 inches
Installation Type :
Wall-mounted
Configure :
2GB RAM + 16GB storage memory, with a self-ejecting TF card slot supporting up to 128GB TF card
Brightness :
500 cd/m²
Surface Material :
Front tempered glass
Bluetooth :
Built-in high-performance serial BT module, supports V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0
MIC Input :
Separate MIC input (header interface)
Screen Resolution :
1920*1080
Network :
10/100/1000M adaptive Ethernet RJ45 port, built-in high-performance SDIO interface Wi-Fi module, supports IEEE 802.11 b/g/n/ac, default single-frequency 2.4GHz
Touch Screen :
10-point capacitive touch screen
Hard Drive :
Standard SATA 3.0 hard drive interface (with power header)
Amplifier Output :
8Ω, 6W dual-channel audio amplifier output
NPU :
Supports 1 TOPS processing power
CAN Bus :
2 CAN header interfaces, expandable for CAN bus peripherals
Viewing Angle :
L/R 178° full viewing angle
Body Craftsmanship :
Aluminum alloy CNC precision, sandblasting oxidation, sheet metal black sand-textured powder coating

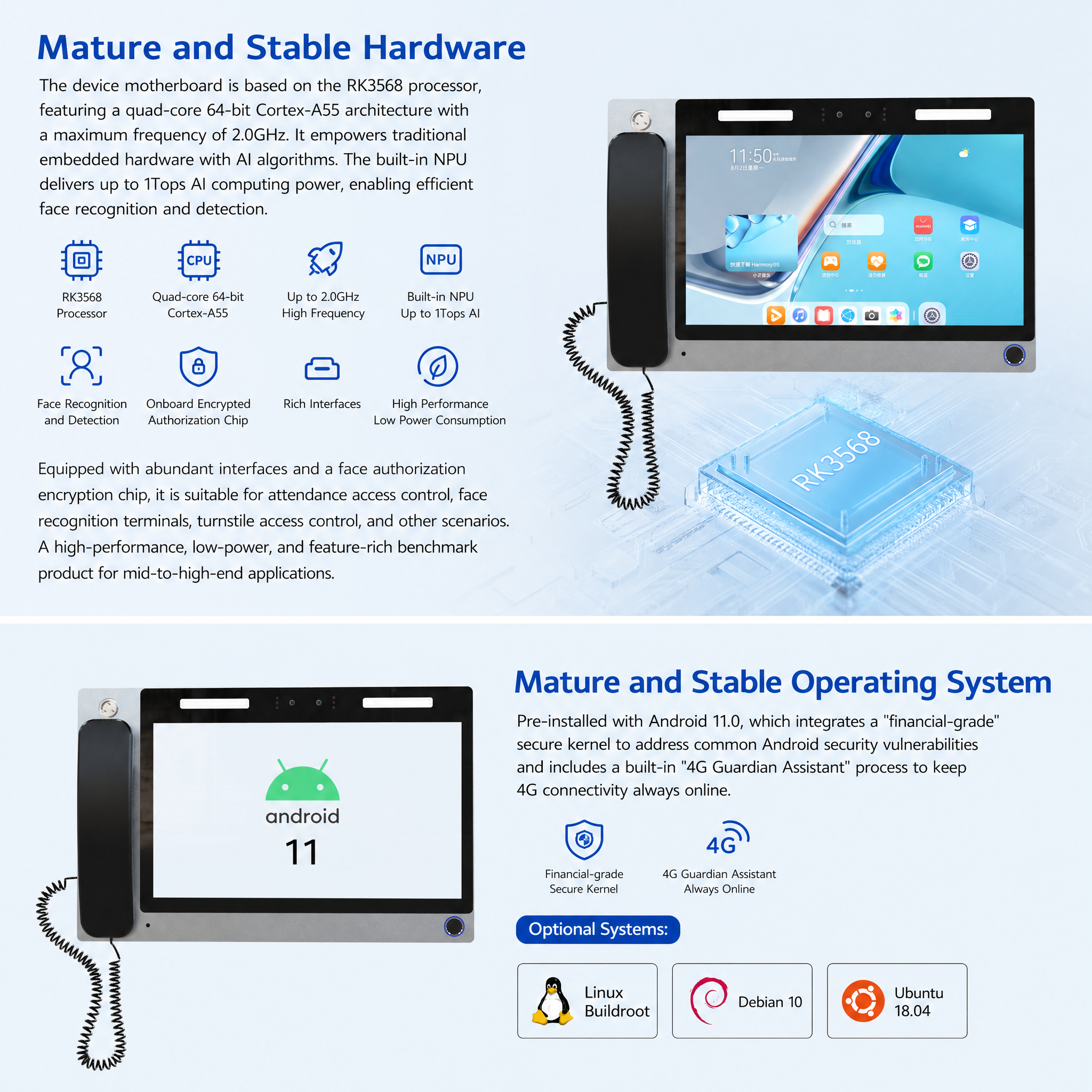

CPU :
RK3568 Quad-core 64-bit Cortex-A55 architecture, built on high-end 22nm process, up to 2.0GHz
Access Control Integration :
Can be connected to access control systems for door unlocking upon successful facial recognition
Model Number :
JP2139A
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
13.3 inches
Operating Parameters :
Voltage: 12V, Current: 3A, Operating temperature: -20°C to 70°C, Humidity: 20%-90%
External Interfaces :
2 USB 3.0 ports, 1 RJ45 port, 1 DC socket, 1 HDMI output, 1 relay port, 4 TTL/232 ports, 1 RS485 port, 1 TF card slot, 1 headset port
Optional :
Capacitive fingerprint module, finger vein module
Record Storage :
Local storage for over 400,000 facial image records
Network Upload :
Works with server-side software to upload and aggregate comparison data from multiple terminals
Operating System :
Recommended Android 11, optional LinuxBuildroot/Debian10/Ubuntu-18.04
Camera :
2MP wide dynamic, anti-backlight, shooting distance 0.5m to 2m
POE Power Supply :
Supported
GPU :
ARM Mali-G52EE, supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, with high-performance 2D acceleration hardware
Speakers :
3W×2
